Electro-Proportional Valves
  • Technical Data
  • Performance Curve
  • Technical Reference
  • Files

Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 10W-3
Rated Flow 21.13 gpm 80 L/min
Maximum Operation Pressure 5000 psi 350 bar
Valve Hex Size 1.0 in. 25.4 mm
Valve Installation Torque 26 - 33 lbf-ft 35 - 45 Nm
Weight 0.559 lbs (without coil) 0.254 kg (without coil)
Maximum Leakage Approximately 30 cc/min at 1000 psi 30 cc/min at 70 bar
Hysteresis with DC Input < 8%
Hysteresis with Dither < 4%
Linearity with Dither < 2%
Dither 100 - 250 Hz (recommend: 140 - 200 Hz)
Reseat exceeds 85% of cracking pressure
Coil EC-16B
Power Consumption 26W

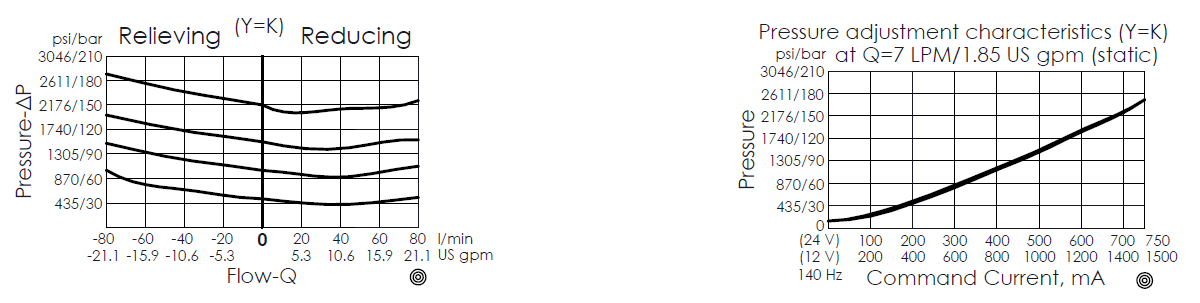

performance curve for PPP10W3C--B1 pilot-operated, spool-type, proportional reducing/relieving valve, showing pressure and flow variations during relieving and reducing conditions, highlighting changes in flow as pressure adjustments are made; pressure adjustment characteristics curve for PPP10W3C--B1 pilot-operated, spool-type, proportional reducing/relieving valve, illustrating the relationship between reduced pressure and command current;
