Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 11A-3
Rated Flow 5.28 gpm 20 L/min
Maximum Operating Pressure 5000 psi 350 bar
Valve Hex Size 7/8 in. 22.22 mm
Maximum valve leakage approximately 40 cc/min.
Valve Installation Torque 30 - 37 lbf-ft 40 - 50 Nm
Weight 0.55 lbs (without coil), 1.08 lbs (with coil) 0.25 kg (without coil), 0.49 kg (with coil)
Linearity (with Dither) <2%
Repeatibility (with Dither) <2%
Hysteresis (with Dither) <4%
Hysteresis with DC Input <8%
Coil EC-19A
Power Consumption 22 W
This is a direct-acting, spool-type, electro-proportional reducing/relieving valve with improved dynamic response. The valve reduces high primary pressure at the inlet to a constant reduced pressure at port 2, while allowing full flow relief from port 2 to the tank at port 1. When operating in reducing mode, the valve allows flow from port 1 to port 3 at a specified pressure setting. By increasing the coil current, the reduced pressure at port 1 can be proportionally increased. If the pressure at port 1 exceeds the coil-induced setting, the valve will relieve the pressure to port 3. During the transition between reducing and relieving, the valve closes to minimize oil consumption.

  • US patent US9234605.
  • If you would like to adjust the pressure by your selves, any technical questions, please feel free to consult with Winner sales department.
  • When the inlet pressure reaches 210 - 350 bar (3000 - 5000 psi), it is recommended to maintain a minimum reduced pressure of 30 bar (450 psi) at port 1 for optimal control.
  • The maximum valve leakage is approximately 20 cc/min. This leakage is measured at port 3 when port 2 is pressurized to 210 bar (3000 psi) and the pressure settting at port 1 is 105 bar (1500 psi).
  • If your operation requires a wide range of settings, such as Y=1000, 1500, 2100 or 3500, and the need to control pressure below 10 bar (150 psi), please contact the Winner sales department.
  • This valve can operate under 1 bar; however, please note that the back pressure at port 3 directly affects the valve setting at a 1:1 ratio.
  • Working parts are heat-treated and high-precision ground to increase hardness for long life.
  • A variety of seal kit materials for different applications, see seals information under Technical Reference.
  • Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is "90/90".
  • WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
  • Winner guarantees that all products performance a 100% functional test before shipment.

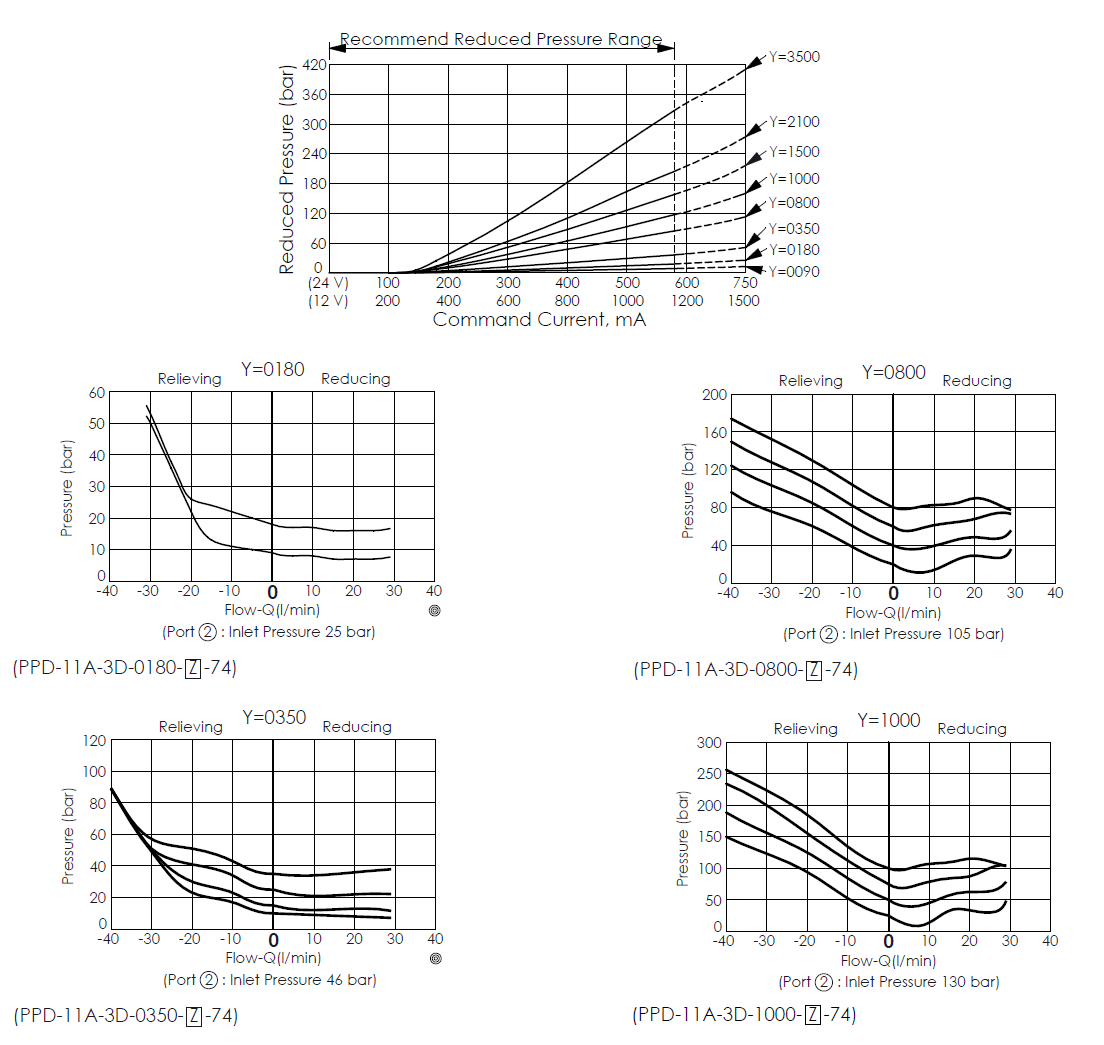

Reduced pressure vs. command current curve for PPD11A3D--74 direct-acting, spool-type electro-proportional reducing/relieving valve with improved dynamic response, highlighting recommended reduced pressure range

The performance curve or data is only for reference, as customers' using condition, pressure, flow, hydraulic fluid viscosity, cleanliness, temperature and so on are different, the curve or data will be different.
