Solenoid On/Off Valves
  • Technical Data

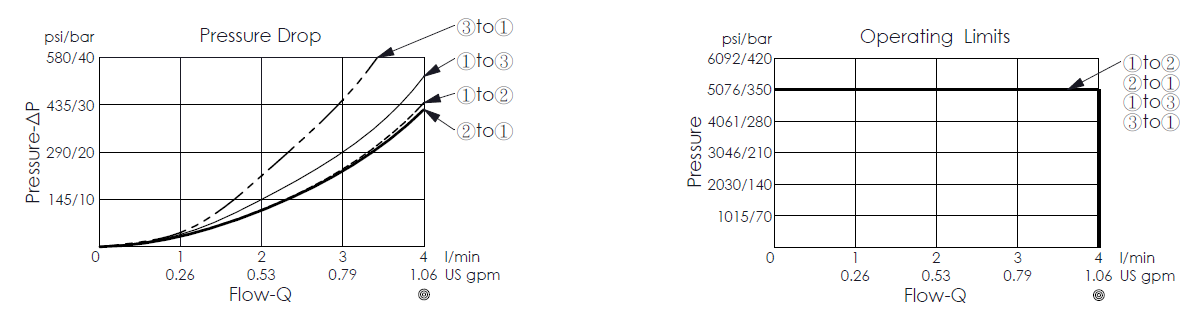

  • Performance Curve
  • Technical Reference
  • Files

Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 9A-3
Rated Flow 0.26 gpm 1 L/min
Maximum Operating Pressure 5000 psi 350 bar
Salt Spray Test to DIN EN ISO 9227:2017-07 Exceed 1000 Hours
Solenoid Valve Hex Size 7/8 in. 22.22 mm
Solenoid Valve Installation Torque 20 - 24 lbf-ft 27 - 33 Nm
Coil Nut Torque 4 - 5 lbf-ft 5 - 7 Nm
Weight 0.328 ibs (Z=N) 0.149 kg (Z=N)
Mounting Position Unrestricted
Coil Type EC-16B
Supply Voltage 90% of nominal
Power Consumption 26W


The performance curve or data is only for reference, as customers' using condition, pressure, flow, hydraulic fluid viscosity, cleanliness, temperature and so on are different, the curve or data will be different.
