Solenoid On/Off Valves
  • Technical Data

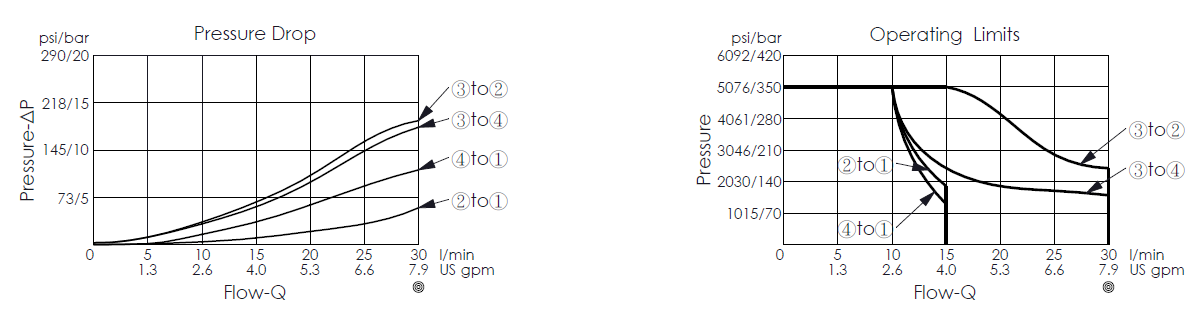

  • Performance Curve
  • Technical Reference
  • Files

Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 31A-4
Rated Flow 5.28 gpm 20 L/min
Rated Pressure 5000 psi 350 bar
Salt Spray Test to DIN EN ISO 9227:2017-07 Exceed 1000 Hours
Solenoid Valve Hex Size 15/16 in. 24 mm
Solenoid Valve Installation Torque 30 - 36 lbf-ft 40 - 50 Nm
Coil Nut Torque 3 - 4 lbf-ft 4 - 6 Nm
Weight 0.628 lbs (Z=N) 0.285 kg (Z=N)
Mounting Position Unrestricted
Coil Type EC-16B
Supply Voltage 90% of nominal
Power Consumption 26W


The performance curve or data is only for reference, as customers' using condition, pressure, flow, hydraulic fluid viscosity, cleanliness, temperature and so on are different, the curve or data will be different.
