US Units
|
Metric Units
Technical Data

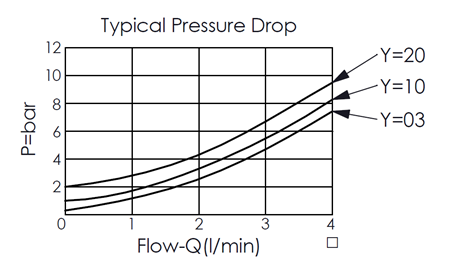

Performance Curve
Technical Reference
Files
Note: Data may vary by configuration. See CONFIGURATION section.
Cavity
382A-3
Rated Flow
1.06 gpm
4 L/min
Maximum Operating Pressure
5000 psi
350 bar
Valve Installation Torque
8 - 10 lbf-ft
11 - 14 Nm
Weight
0.015 lbs
0.007 kg
Technical Information:
Hydraulic Fluid Viscosity
Hydraulic Fluid Cleanliness
Hydraulic Fluid Temperature
Cartridge Valve Warranty Information
Technical Data Statement
Fatigue and Burst Pressure Test Standard
Orifice vs. Pressure Drop Curves Chart
Note of Valves Assembling and Disassembling in Ductile Manifolds
Calculate of Pipe Diameter
Seals Information:
Two Ways to Order "Seal Kits"
Cartridge Valve Seal Material Configuration
PDF File
CV382A20-NS.STEP
Out of stock.,
contact us
Home
Products
Cartridge Valves
Stainless Steel All Metal Components
Check
Free flow nose to side (stainless steel all metal components)
