Solenoid On/Off Valves
  • Technical Data
  • Product Description

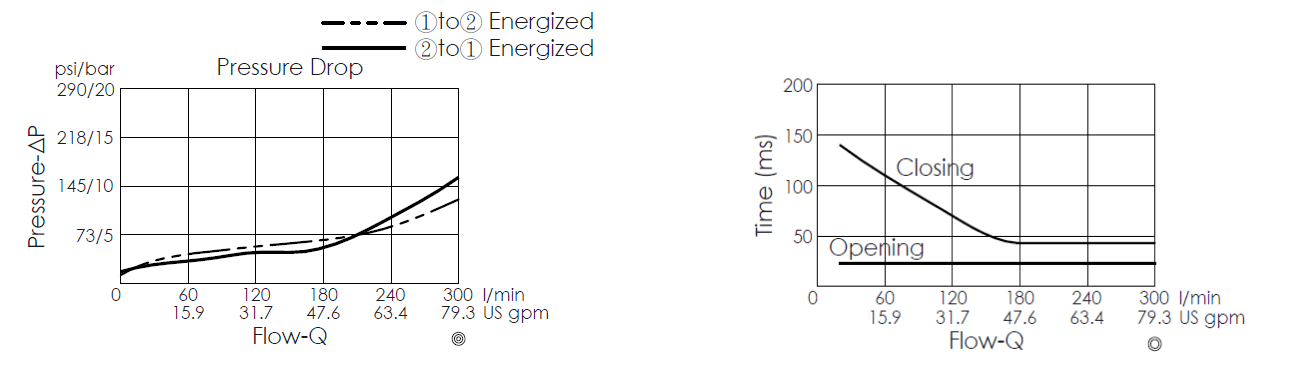

  • Performance Curve
  • Technical Reference
  • Files

Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 42M-2
Rated Flow 79.25 gpm 300 L/min
Maximum Operating Pressure 5000 psi 350 bar
Fluid Temperature Range -40 to 120 ℃ (-40 to 248 ℉)
Maximum Leakage Approximately 0.15 cc/min (3 drops/min) at 5000 psi 0.15 cc/min (3 drops/min) at 350 bar
Salt Spray Test to DIN EN ISO 9227:2017-07 Exceed 1000 Hours
Solenoid Valve Hex Size 1-1/2 in. 38 mm
Solenoid Valve Installation Torque 81 - 96 lbf-ft 110 - 130 Nm
Locknut Torque 1.5 - 2 lbf-ft 2 - 3 Nm
Weight 1.46 lbs (Z=N) 0.66 kg (Z=N)
Mounting Position Unrestricted
Coil Type EC-04W
Supply Voltage 90% of nominal
Power Consumption 20W
This is a pilot-operated, poppet type, 2-way 2-position, normally open solenoid valve, designed for high flow applications requiring virtually zero internal leakage. When energized, flow is blocked in both direction, regardless of pressure on port 1 and port 2. When de-energized, it allows flow in both directions.

  • Continuous-duty rated coil.
  • Efficient wet-armature construction.
  • Working parts are heat-treated and high-precision ground to increase hardness for long life and essentially zero leakage.
  • A variety of seal kit materials for different applications, see seals information under Technical Reference.
  • Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is “90/90”.
  • WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
  • Winner guarantees that all products performance a 100% functional test before shipment.
  • Note: The control option “Z=T” can only be used for emergency or test use. Please keep at the normal operational position after turning counterclockwise. A larger force is required for downward push during high-pressure operations, please contact Winner's sales department.
