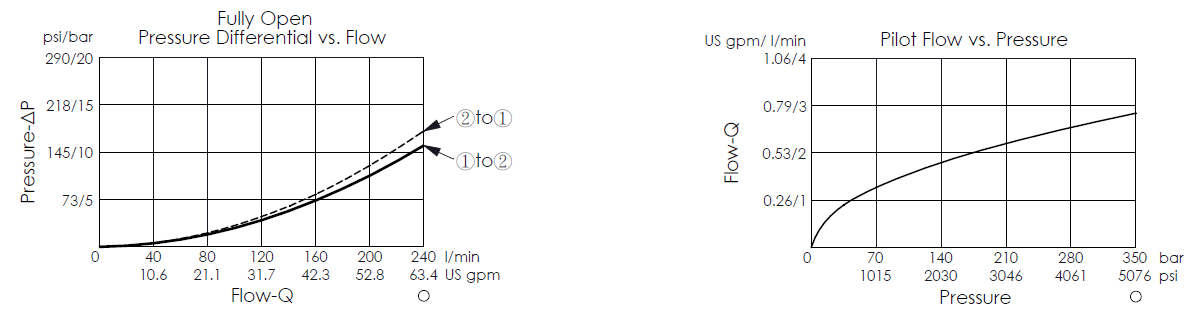

  • Performance Curve
  • Technical Reference
  • Files

Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 23A-4
Rated Flow 63.4 gpm 240 L/min
Maximum Operating Pressure 5000 psi 350 bar
Valve Hex Size 1-1/4 in. 31.7 mm
Valve Installation Torque 148 - 158 lbf-ft 200 - 215 Nm
Maximum Leakage Approximately 0.7 cc/min at 1000 psi 0.7 cc/min at 70 bar
Weight 1.41 lbs 0.64 kg
