Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 10A-2
Rated Flow 25.1 gpm 95 L/min
Maximum Operating Pressure 5000 psi 350 bar
Valve Hex Size 7/8 in. 22.22 in.
Valve Installation Torque 30 - 37 lbf-ft 40 - 50 Nm
Maximum Leakage Approximately 0.7 cc/min at 1000 psi 0.7 cc/min at 70 bar
Weight 0.22 lbs 0.1 kg

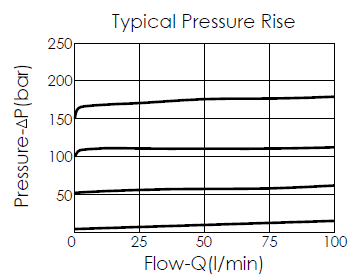

Typical pressure rise performance curve for RC10A2G-8-1 pilot-operated, balanced poppet relief valve with a reverse check function, main stage with integral 8A-2 control cavity, showing the relationship between pressure and flow variation
