Cartridge Valves
  • Technical Data
  • Performance Curve
  • Technical Reference
  • Files

Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 2A-3
Rated Flow 31.7 gpm 120 L/min
Control Pilot Flow 0.04 - 0.11 gpm 0.16 - 0.41 L/min
Maximum Operating Pressure 5000 psi 350 bar
Valve Hex Size 1-1/8 in, 28.57 mm
Valve Installation Torque 45 - 51 lbf-ft 60 - 70 Nm
Adjustment Screw Internal Hex Size 5/32 in. 4 mm
Locknut Hex Size 9/16 in. 14.27 mm
Locknut Torque 6 - 7 lbf-ft 9 - 10 Nm
Response Time-Typical 2 ms
Weight 1.022 lbs (Z=L) 0.464 kg (Z=L)

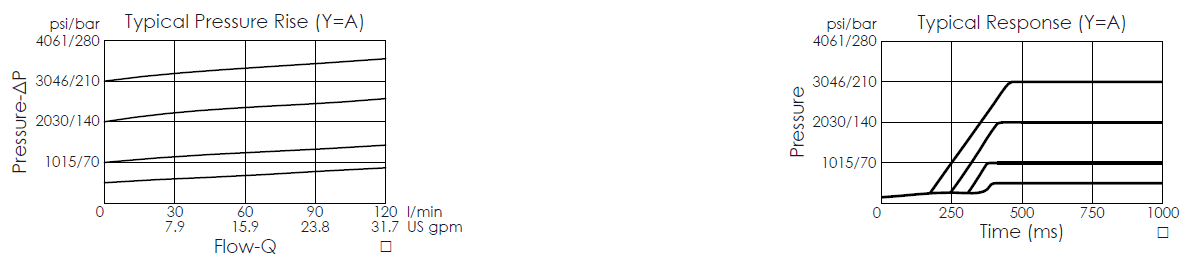

Typical pressure rise performance curve for RT2A3G anti-shock, pilot-operated, balanced piston, ventable relief valve with an integral 8A-2 control cavity, showing the relationship between pressure and flow variation

The performance curve or data is only for reference, as customers' using condition, pressure, flow, hydraulic fluid viscosity, cleanliness, temperature and so on are different, the curve or data will be different.
