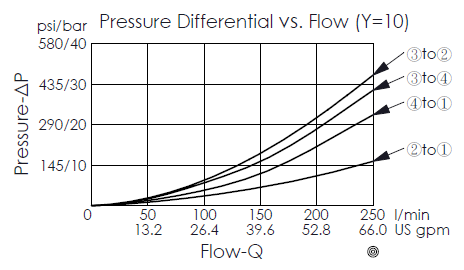

  • 性能曲線
  • 技術リファレンス
  • ファイル

Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 63A-6
Rated Flow 25.1 - 100.39 gpm 95 - 380 L/min
Maximum Operating Pressure 5000 psi 350 bar
Minimum Pilot Pressure Required to Shift Valve 130 psi 9 bar
Maximum Leakage Approximately 30 cc/min. at 1000 psi 30 cc/min at 70 bar
Valve Hex Size 1-1/4 in. 31.7 mm
Valve Installation Torque 148 - 158 lbf-ft 200 - 215 Nm
Weight 1.859 lbs 0.844 kg
