カートリッジ弁
  • 技術データ
  • 製品説明
  • 性能曲線
  • 技術リファレンス
  • ファイル

Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 16W-2
Rated Flow 25.1 gpm 95 L/min
Maximum Operating Pressure 3400 psi 240 bar
Valve Hex Size 1-1/2 in. 38 mm
Valve Installation Torque 45 - 51 lbf-ft 60 - 70 Nm
Adjustment Screw Internal Hex Size 5/32 in. 4 mm
Locknut Hex Size 9/16 in. 14.27 mm
Locknut Torque 6 - 7 lbf-ft 9 - 10 Nm
Weight 0.844 lbs (Z=B) 0.383 kg (Z=B)
This valve is a direct-acting, spool-type, pressure-compensated flow control valve designed to maintain a constant flow from Port 1 to Port 2, regardless of downstream load pressure fluctuations. Reverse flow from port 2 to port 1 is limited by the diameter of the selected control orifice and is not pressure-compensated.

  • The factory standard flow setting can be specified by the customer. For example, for a seting 60 LPM±10%, the ordering code would be FR-16W-29-N-Z-0600. Please contact the Winner sales department for further details.
  • Fast and smooth response to load changes.
  • Excellent stability throughout the entire flow range.
  • Working parts are heat-treated and high-precision ground to increase hardness for long life.
  • A variety of seal kit materials for different applications, see seals information under Technical Reference.
  • Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is “90/90”.
  • WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
  • Winner guarantees that all products performance a 100% functional test before shipment.

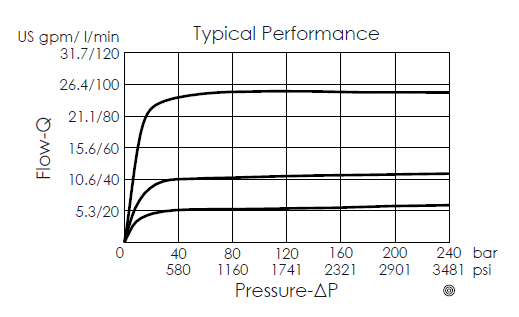

typical performance curve for FR-16W-29-Y-Z fine low-torque adjustment, pressure-compensated flow control valve indicates the variant between flow and pressure drop
