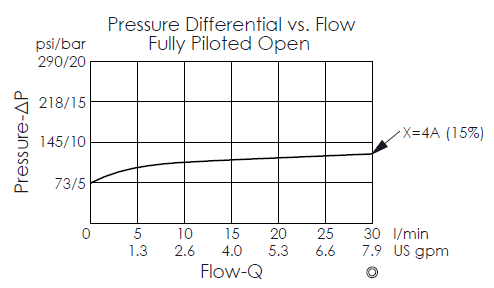

  • 性能曲線
  • アプリケーション例
  • 技術リファレンス
  • ファイル

Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 10W-4
Rated Flow 7.93 gpm 30 L/min
Maximum Operating Pressure 5000 psi 350 bae
Valve Hex Size 1.0 in. 25.4 mm
Maximum Leakage Approximately 25 cc/min.
Valve Installation Torque 26 - 33 lbf-ft 35 - 45 Nm
Adjustment Screw Internal Hex Size 5/32 in. 4 mm
Locknut Hex Size 9/16 in. 14.27 mm
Locknut Torque 6 - 7 lbf-ft 9 - 10 Nm
Weight 0.568 lbs 0.258 kg
This accumulator-sense pump unload valve is a hydraulic valve used to unload a pump and direct flow to a tank once a specific system pressure is reached. It features a pilot-operated design where the opening of a smaller, pilot-stage valve exhausts oil above the main-stage piston (spool), which then causes the main valve to shift and unload the system. Flow from Port 1 to Port 2 is blocked until the remote pilot pressure at Port 3 exceeds the pressure setting, when the secondary piston lifts the pilot-stage poppet to allow flow from Port 1 to Port 2. When the pilot pressure at Port 3 (from the accumulator) drops to a certain ratio of the valve's pressure setting, flow from Port 1 to Port 2 will be blocked. The pump then delivers oil to the accumulator until the system pressure reaches the upper setting. This action is repeated automatically.

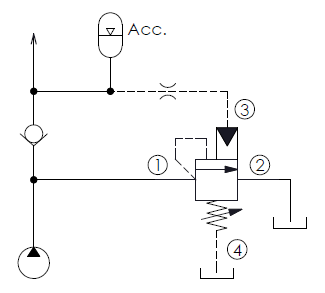

  • The accumulator-sense pump unload valve is commonly used to unload a high-volume pump in an accumulator circuit to avoid continuous operation at full flow; or is used in systems with two pumps, where one pump can be unloaded once a certain pressure is reached.
  • Backpressure at port 4 (tank) is added directly to the valve setting in a 1:1 ratio.
  • The maximum leakage is approximately 25cc/min.
  • Working parts are heat-treated and high-precision ground to increase hardness for long life.
  • A variety of seal kit materials for different applications, see seals information under Technical Reference.
  • Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is “90/90”.
  • WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
  • Winner guarantees that all products performance a 100% functional test before shipment.

The QR valve can substitute for the combined functions of a QP valve (accumulator-sense pump unload valve) and an independent RV valve (relief valve).
