Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 10W-5
Rated Flow 5.28 gpn 20 L/min
Rated Pressure 5000 psi 350 bar
Response Time Depending on Pressure and Flow On: 30 - 60 ms, Off: 20 - 40 ms
Salt Spray Test to DIN EN ISO 9227:2017-07 Exceed 1000 Hours
Solenoid Valve Hex Size 1 in. 25.4 mm
Solenoid Valve Installation Torque 19 - 26 lbf-ft 25 - 35 Nm
Coil Nut Torque 5.2 - 7.3 lbf-ft 7 - 10 Nm
Weight 0.684 lbs (Z=N) 0.312 kg (Z=N)
Mounting Position Unrestricted
Coil Type EC-16B
Supply Voltage 90% of nominal
Power Consumption 26W
This is a 5-way, 3-position, direct-acting, spool-type solenoid valve. When coil S1 is energized, the spool shifts, allowing flow from port 3 to port 4 and from port 2 to port 1, while blocking port 5. When coil S2 is energized, the spool shifts, allowing flow from port 4 to port 1 and from port 3 to port 2, while blocking port 5. In the neutral position, all ports are connected.

  • Continuous-duty rated coil.
  • Efficient wet-armature construction.
  • This valve features a direct-acting design and requires no minimum pressure for operation.
  • The fatigue pressure rating for this solenoid tube assembly is 350 bar (5000 psi).
  • Spool valves will have normal leakage due to spool clearance. For low leakage applications, please contact the Winner sales department.
  • Working parts are heat-treated and high-precision ground to increase hardness for long life.
  • A variety of seal kit materials for different applications, see seals information under Technical Reference.
  • The environmental protection rating of the coil connector is up to IP69K. For more details, please see the continuous duty coil product page under the ‘Electronic’ category.
  • Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is “90/90”.
  • WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
  • Winner guarantees that all products performance a 100% functional test before shipment.

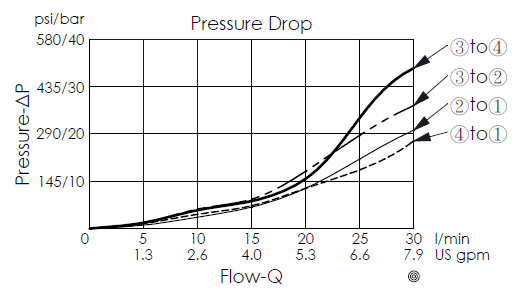

Pressure drop curve for ES-10W-5C-Y-Z-05 direct-acting, spool-type, 5/3 solenoid valve, showing flow and pressure characteristics
