Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 61A-6
Rated Flow 5.28 gpm 20 L/min
Maximum Operating Pressure 5000 psi 350 bar
Response Time Depending on Pressure and Flow 40 - 60 ms
Salt Spray Test to DIN EN ISO 9227:2017-07 Exceed 1000 Hours
Solenoid Valve Hex Size 7/8 in. 22.22 mm
Solenoid Valve Installation Torque 30 - 36 lbf-ft 40 - 50 Nm
Coil Nut Torque 2.2 - 3.7 lbf-ft 3 - 5 Nm
Weight 0.844 lbs (Z=N) 0.383 kg (Z=N)
Mounting Position Unrestricted
Coil Type EC-19A
Supply Voltage 90% of nominal
Power Consumption 22 W
This is a direct-acting, spool-type, 6-way, 2-position solenoid valve. It is typically used to selectively switch between two hydraulic circuits. The valve connects the pressure (P) and tank (T) ports to the first circuit when de-energized, and to the second circuit when energized.

  • Continuous-duty rated coil.
  • Efficient wet-armature construction.
  • This valve features a direct-acting design and requires no minimum pressure for operation.
  • The fatigue pressure rating for this solenoid tube assembly is 350 bar (5000 psi).
  • Spool valves will have normal leakage due to spool clearance. For low leakage applications, please contact the Winner sales department.
  • Working parts are heat-treated and high-precision ground to increase hardness for long life.
  • This valve can be controlled via several manual override options (Configuration Z), or it can be used without one. For more details, please refer to technical document J.990.115.E.
  • The mechanical lifespan of this valve's manual override mechanism is approximately 7,000 cycles.
  • A variety of seal kit materials for different applications, see seals information under Technical Reference.
  • The environmental protection rating of the coil connector is up to IP69K. For more details, please see the continuous duty coil product page under the ‘Electronic’ category.
  • Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is “90/90”.
  • WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
  • Winner guarantees that all products performance a 100% functional test before shipment.

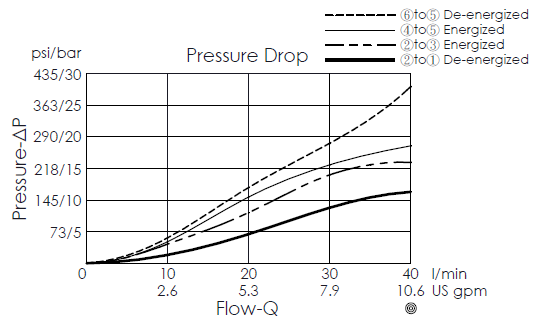

Pressure drop curve for ES61A6D10-04 direct-acting, spool-type, 6/2 solenoid valve, showing flow and pressure characteristics
